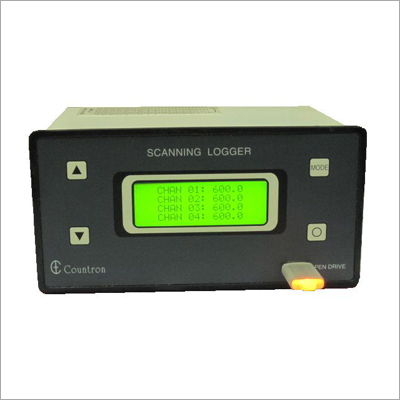

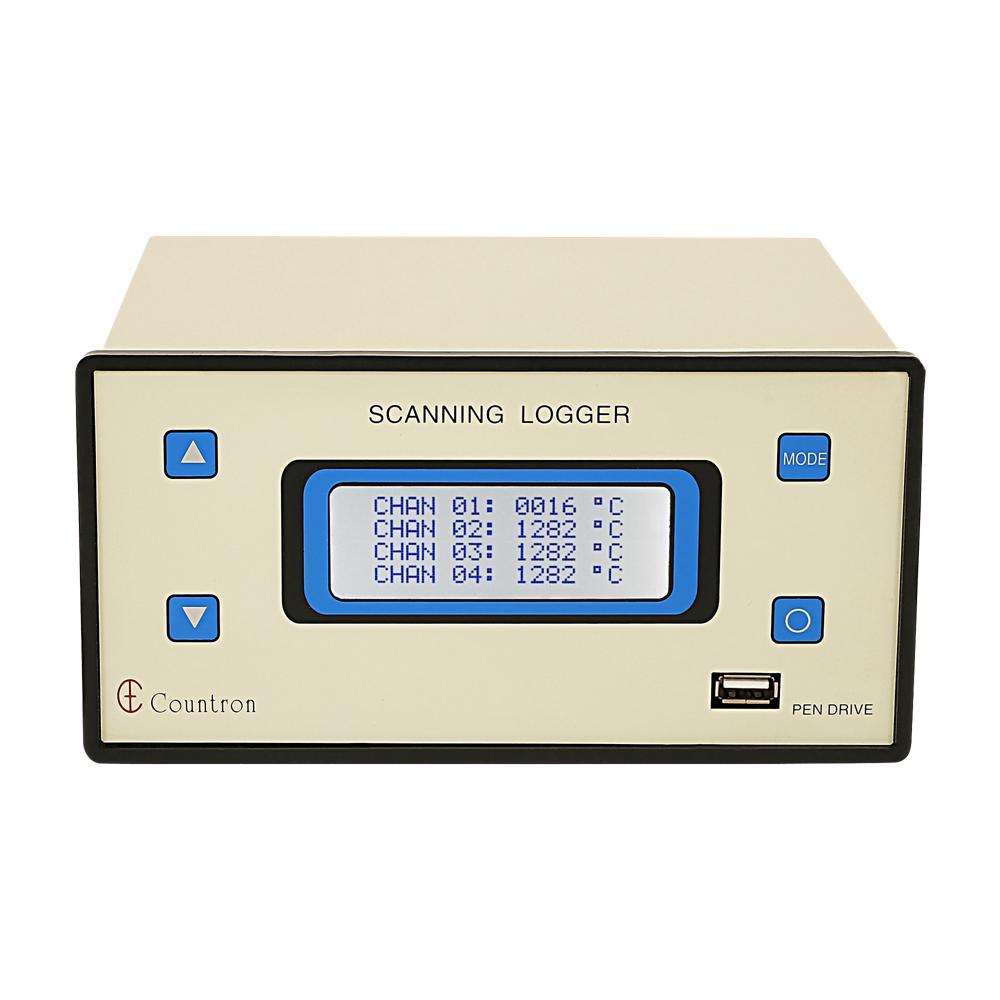

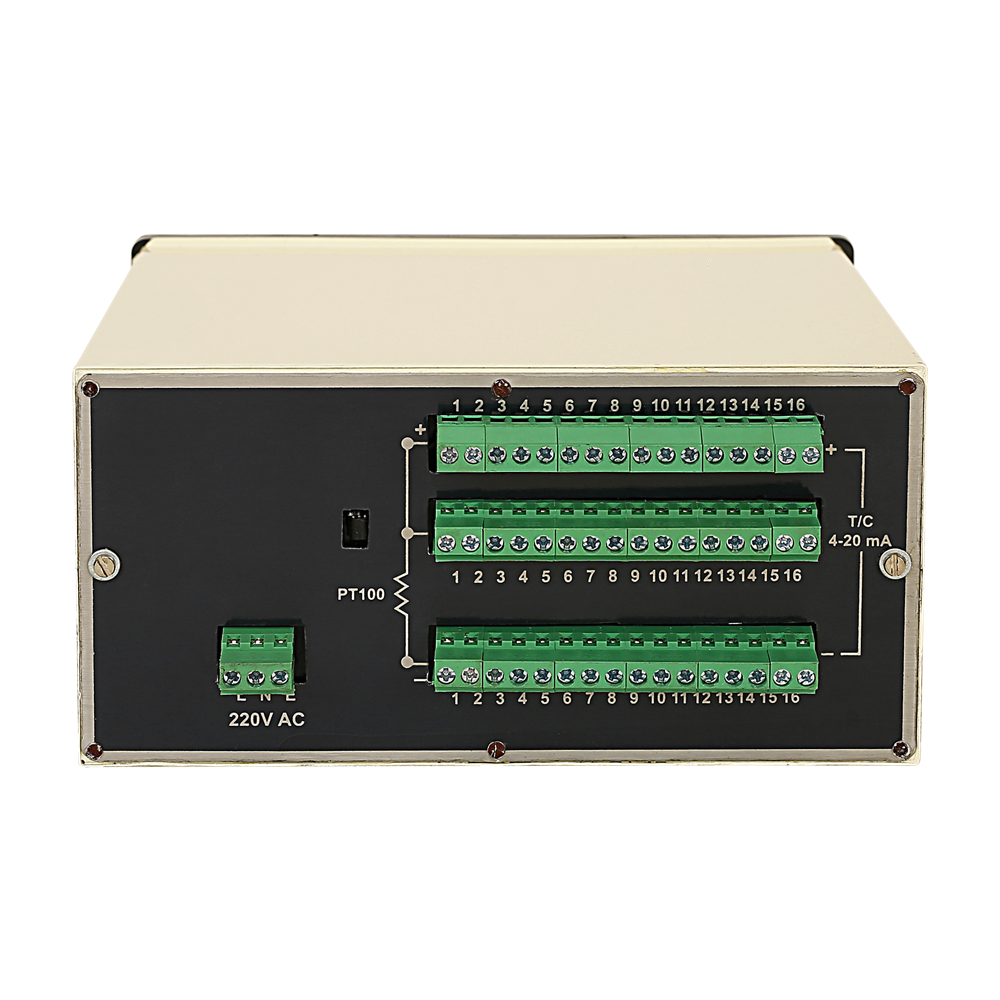

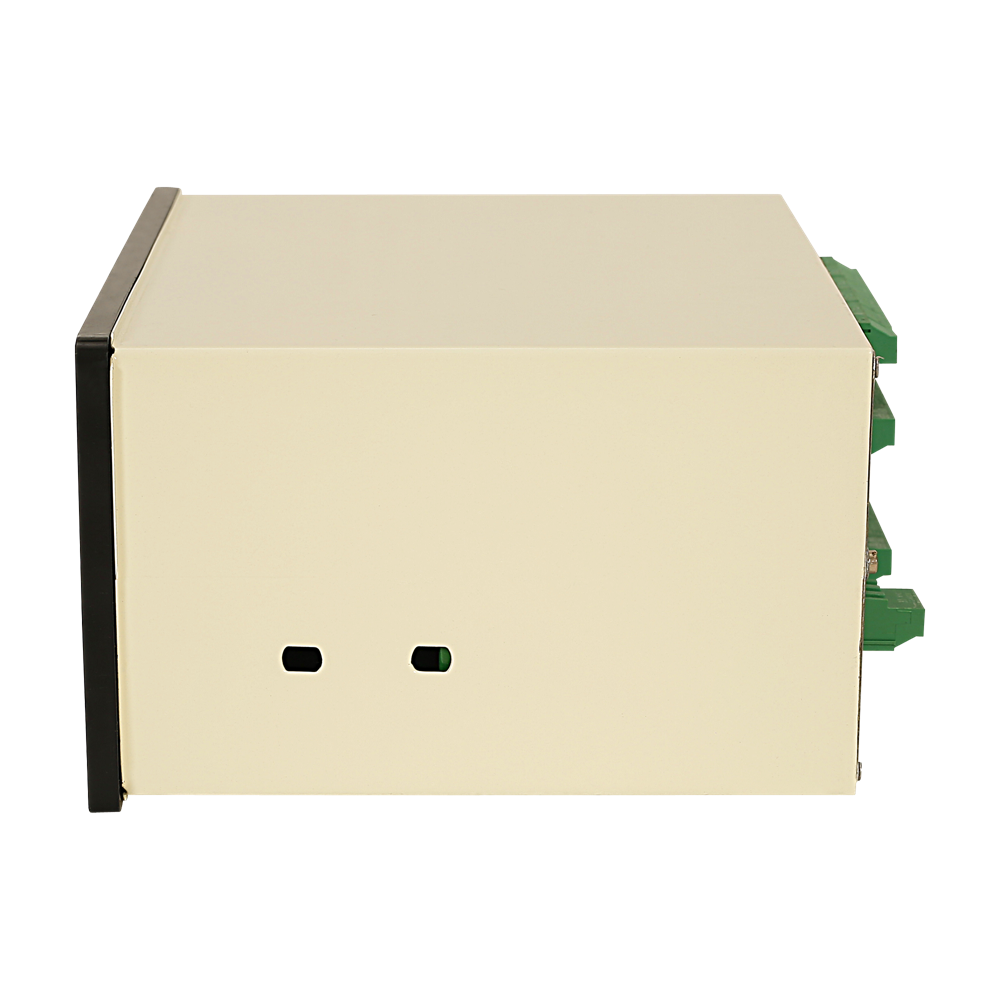

16 Channel Temperature Scanner Logger Model CT716

16 Channel Temperature Scanner Logger Model CT716

Name: 16 Channel Temperature Scanner Logger Model CT716
Brand: COUNTRONICS
Price: 15000.0 INR
Availability: InStock

15000.0 INR/Piece

Get a Price/Quote

Product Details:

Power Supply 230V AC, 50Hz
Alarm Programmable alarm with relay output
Temperature Range -200C to 1370C
Data Capacity Up to 10,000 records (approximate)
Theory Digital scanning and logging for multi-channel temperature measurement
Type 16 Channel Temperature Scanner Logger
Display Type Large digital LED display
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

16 Channel Temperature Scanner Logger Model CT716 Price And Quantity

Price 15000.0 INR/Piece
Minimum Order Quantity 1 ,

16 Channel Temperature Scanner Logger Model CT716 Product Specifications

Alarm Programmable alarm with relay output
Temperature Range -200C to 1370C
Type 16 Channel Temperature Scanner Logger
Includes Temperature scanner logger unit; sensors provided separately
Size Approx. 300mm x 105mm x 250mm
Measuring Range -200C to 1370C (dependent on thermocouple type)
Theory Digital scanning and logging for multi-channel temperature measurement
Battery Operates on external power; No inbuilt battery
Data Capacity Up to 10,000 records (approximate)
Standby Time Continuous operation when powered
Net Weight About 2.7 kg
Accuracy 0.25% of reading or 1C
Power Supply 230V AC, 50Hz
Resolution 0.1C
Memory Built-in data logging memory
Interface RS232, RS485
Display Type Large digital LED display

16 Channel Temperature Scanner Logger Model CT716 Trade Information

Payment Terms Cheque, Telegraphic Transfer (T/T), Cash in Advance (CID)
Supply Ability 20 , Per Month
Delivery Time 5 Week
Main Export Market(s) Central America, Asia, Australia, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India

Product Description

Backed by our prime motto to provide our clients with best in class products in a stipulated time frame, we have emerged as a superior manufacturer and trader of a wide gamut of16 Channel Temperature Scanner Logger. These loggers are manufactured under the strict supervision of our competent manpower. Also, our range of 16 Channel Data Logger is widely appreciated for attributes such as data saved directly on USB pen drive in an ms excel compatible file, no need of any complicated or additional software for managing data,etc.

Model code:CT716

Product Name:16 channelTemperature Scanner Logger

Category:data_logger

Sub Category:Data Logger

Features

Microprocessor based linearized for J/K/R Thermocouples and PT100 temperature sensors.
4 line alphanumeric LCD display with back-light for user friendly displays
Auto cold junction compensation for thermocouples and 3 wire input for PT100
Number of usable channels selectable from 1-16.
Auto/Manual mode of scanning selectable
Rate of logging settable by user in Mins:Secs
Digital offset user settable for individual channels
Internal Real Time Clock with battery backup for saving values along with Date and Time
Saving data on Pen drive allows a very large amount of storage space at very low cost.

Specification

Display	4x20 line 0.3 character height alphanumeric LCD module display
Sensor	J/K/R Thermocouples and 3 wire PT100 sensor user selectable
Range	J-T/C: 0 to 750C, K-T/C: 0 to 1250C, R-T/C : 0 to 1700C, PT100: -100.0 to +600.0 C,
Resolution	1C for thermocouples and 0.1C for PT100
Channels	Maximum 16
Scanning Rate	User settable from 1-99seconds
Digital Offset	User settable individually for each channel
Logging Rate	1second to 99Mins59seconds
Data Logging	Directly create a .csv file on the Pen Drive (compatible with Excel)giving a tabular format values of Date, Time and selected channels
Real Time Clock	Adjustable Calendar (Month/Date) and Time (Hrs:Mins)
Accuracy	1C 1 for Thermocouples, 0.1C 1 for PT100
Power Supply	230V AC 15% at 50/60Hz
Front Facia	96mm x 192mm

Comprehensive Multi-Channel Temperature Monitoring

The CT716 delivers accurate digital scanning and logging for up to 16 temperature channels, making it ideal for process control, testing, and laboratory environments. Each channels temperature is displayed with individual indicators, providing instantaneous status and facilitating quick identification. Its compatibility with various thermocouple types and a broad measuring range of -200C to 1370C ensures suitability for demanding scenarios.

User-Friendly Operation and Connectivity

Equipped with a large LED display and front panel calibration access, the CT716 simplifies both viewing and maintenance tasks. Its manual and automatic scanning functions enable users to adapt operation to their requirements, while built-in memory allows storage of up to 10,000 records. Data exporting through RS232/RS485 ensures seamless integration with other systems, aiding in efficient data management.

FAQs of 16 Channel Temperature Scanner Logger Model CT716:

Q: How do I configure the input type for each channel on the CT716 logger?

A: Each channel on the CT716 can be individually configured to accept J, K, T, R, S, N, or E type thermocouples. This is accomplished using the devices front panel settings, allowing flexibility based on your specific application requirements.

Q: What is the process for exporting logged temperature data from the CT716?

A: To export recorded data, connect the CT716 via its RS232 or RS485 interface to a compatible computer or data acquisition system. Follow the manufacturers communication protocol to transfer data for analysis or archiving.

Q: When should I perform calibration on the CT716, and how is it accessed?

A: Regular calibration ensures accurate readings, especially when used in critical applications. The CT716 offers front panel calibration access, streamlining adjustments and reducing downtime during routine maintenance.

Q: Where can the CT716 Temperature Scanner Logger be mounted?

A: The CT716 is designed for both bench-top and panel-mounted installations, making it suitable for laboratory benches, control panels, or process monitoring stations in industrial settings.

Q: What measures are in place to protect the device and ensure safe operation?

A: The unit provides main power fuse protection, IP20 protection class, and self-diagnostic LED indicators to monitor system status. These features help prevent damage and alert users to potential issues, promoting reliability and safety.

Q: How does the programmable alarm function enhance operation?

A: The programmable alarm with relay output allows you to set temperature thresholds for any channel. If limits are exceeded, the relay output can trigger external devices or alert operators, supporting proactive response in temperature-critical situations.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Data Loggers Data Acquisition Systems' category

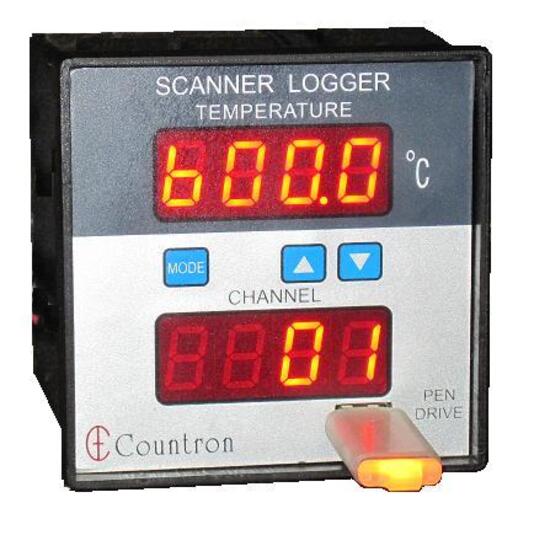

8 channel Temperature Scanner Logger CT708 Price : 11000.0 INR/Piece Minimum Order Quantity : 1 GPS : No Material : MS Alarm : No Type : Temperature Scanners, Other Usage : Industrial Power Supply : Manual Product Type : Temperature Scanners Voltage : 110215 Volt (v) Display Type : LED
