Digital Timers

We are engaged in rendering supreme range of Digital Timers. These are suitable for large industrial uses. Apart from these, provided timers are used in process control equipment to assist in process regulation. These timers are also useful as consumer electronics for household use and recreational use. Digital Timers are used for measuring specific time intervals. We provide custom made solutions to our respected consumers. These are a device which is highly effective and counts down from a time interval. These timers are able to provide an exact measurement.

2 Digit LED Display Digital Timer

Timers with 2 Thumb Wheel Settings Without Display

Model code:1002
Product Name:Timers with 2 Thumb Wheel Settings (Without Displa
Category:digital_meters
Sub Category:blind_timers

Features



  • Quartz Crystal Base for 0.01% Accuracty/Repeat Accuracy.
  • Ranges Covering 0.01 sec. to 9999 min.
  • Resolution for 0.01, 0.1, 1 sec. OR 0.1, 1 Min. OR 0.1 Hr.
  • Delayed On/ Delayed Off Process or Cascading Operation.
  • Single/ Cyclic/ Sequence/ Cyclic-cum-Sequence Operation.
  • Mains/Remote/Push Button Initiation.
  • Blind/Digital Timers.
  • Din Standard 96 x 48, 96 x 96 & 96 x 192 mm Panel/Wall Mounting Case.
  • 110 V AC, 230 V AC, 12 V DC or 24 V DC Operation.
  • Potential Free Ouptut in the form of 2 Change Over Relay Contact @5A/230V AC or Solid State Relay with AC Output.
  • Instant On Relay also available as option.
  • Setting by Thumbwheel Switches.
  • Independent of Mains Frequency/Voltage Variations

Specification



Thumb Wheel

2

Range

99 sec. or 99 min.







Programmable Timer

  • Model code:1050
  • Product Name:Programmable Timer
  • Category:digital_meters
  • Sub Category:universal_microprocessor_based

Specification

Display

a. 4 Digit 0.56 Red 7 segment LED display

b. 4 Red LEDs to indicate selected timing range

c. Red LED to indicate current status of Relay On/Off

Modes

: User settable from front panel

  a. Power On start

  b. Press to start (with battery backup selection using EEPROM)

  c. Cyclic action

Number of Cycles

: 1-99 cycles settable for cyclic mode after which the timer stops

  Setting number of cycles to Zero disables number of cycles setting

Reset/Start

: Front Reset/Start switch with parallel terminals at rear to connect

  additional switch, if required.

Relay logic

: Settable delayed On/Off,   5 Amps/220V AC Dual Relay Contact

  outputs

Timing direction

: Up/Down time counting user settable

Memory

: Non-volatile EEPROM to save settings

Configuration Lock

: Open terminals 1&2 to lock all configuration except Set Limits

Supply

: 220V AC 15% @ 50/60Hz

Dimensions

: Front Facia: 96mmx96mmx135mm    Cut Out: 91mmx91mm

Weight

: 800 grams



Timers with 3 Thumb Wheel Settings Without Display

  • Model code:1003
  • Product Name:Timers with 3 Thumb Wheel Settings Without Display
  • Category:digital_meters
  • Sub Category:blind_timers

Specification

Thumb Wheel

2

Range

99 sec. or 99 min.

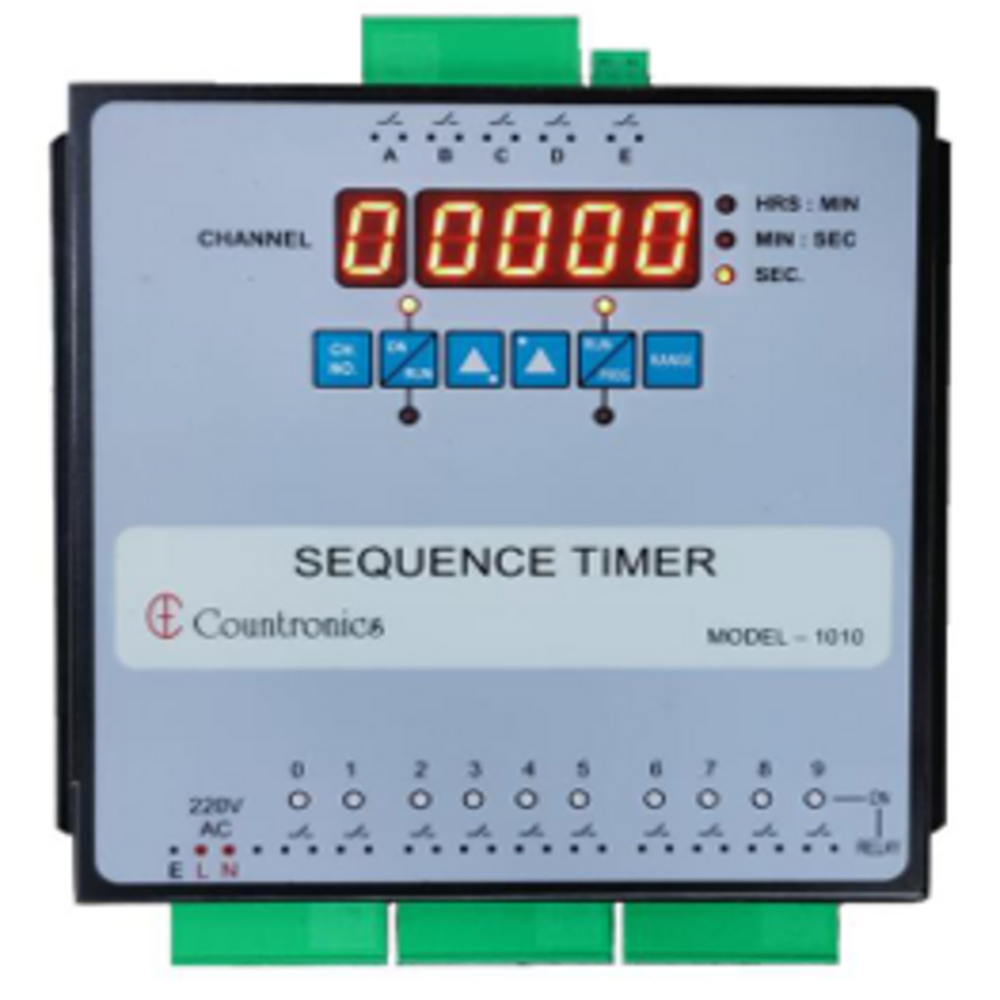

10 Channel Sequential Timer



4 Digit Digital Timers

Our firm has gained a huge appreciation in rendering a wide series of 4 Digit Digital Timers with LED Display & Thumb Wh. It is fabricated with a sophisticated with a premium tool to give a high timing accuracy. This range is easy to set freely without any error. 4 Digit Digital Timers with LED Display & Thumb Wh is availed in numerous configurations to meet the specific expectations of our valuable consumers.



LED Display 3 Digit Digital Timer

Being an eminent firm, we are offering a great series of 3 Digit Digital Timer LED Display & Thumb Wheel. It is easy to perform the task. It is cherished in the market for its multifunction and convenient operation. 3 Digit Digital Timer LED Display & Thumb Wheel ensures a superb user interface like push button. It is suitable for controlling operation of equipment. It is suitable for industrial applications. It comes at affordable market rates.



2 Digit On Off Repeat Cycle Timer

We are counted among some of the most noted manufacturers and traders of a huge gamut of 2 Digit On Off Repeat Cycle Timer. Also, these timers are designed and manufactured under the strict supervision our adept manpower who make use of high grade basic material sourced form certified vendors of the industry. Our offered timers are best suited for resolution for 0.01, 0.1, 1 sec. OR 0.1, 1 Min. OR 0.1 Hr. Also, our range of 2 Digit On Off Repeat Cycle Timer is appreciated for stupendous quality, engineered with precision, provide accurate and error free timing, etc.

  • Model code:1072
  • Product Name:2 Digit On Off Repeat Cycle Timer
  • Category:digital_meters
  • Sub Category:cyclic_timers

Features

  • Quartz Crystal Base for 0.01% Accuracy/Repeat Accuracy.
  • Ranges Covering 0.01 sec. to 9999 min.
  • Delayed On/ Delayed Off Process or Cascading Operation.
  • Single/ Cyclic/ Sequence/ Cyclic-cum-Sequence Operation.
  • Mains/Remote/Push Button Initiation.
  • Blind/Digital Timers.
  • Din Standard 96 x 48, 96 x 96 & 96 x 192 mm Panel/Wall Mounting Case.
  • 110 V AC, 230 V AC, 12 V DC or 24 V DC Operation.
  • Potential Free Output in the form of 2 Change Over Relay Contact @5A/230V AC or Solid State Relay with AC Output.
  • 'Instant On' Relay also available as option.
  • Setting by Thumb wheel Switches.
  • Independent of Mains Frequency/Voltage Variations.

Specification

  • Display: 2 Digit (0.5 inch Red 7 Seg)
  • Range: Internally adjustable with Jumpers for 99sec or 99min.
  • Other Ranges available on Request.
  • Settings: 2 Push Wheels for ON-TIME and 2 for OFF-TIME
  • Output: 2 Sets of NO-P-NC. 5 Amps Relay Contact.
  • Supply: 220V AC +/- 15% 50Hz
  • Size: 96mm x 96 mm
  • Mounting : Panel Type

2 Digit Digital Timer

In a shirt period of time, we have became a prominent manufacturer and trader of a huge gamut of 2 Digit Digital Timer. These meters are designed and engineered with ultimate perfection at our state of the art production wing. Basically these are mainly electrical equipment which count down minutes. Our range of 2 Digit Digital Timer is best known for attributes such as stupendous quality, engineered with precision, affordable price, provide accurate and error free timing, easy to operate and the likes.
