HUMIDITY and TEMPERATURE CONTROLLER Model 7214

HUMIDITY and TEMPERATURE CONTROLLER Model 7214

Name: HUMIDITY and TEMPERATURE CONTROLLER Model 7214
Brand: COUNTRONICS
Price: 3750.0 INR
Availability: InStock

3750.0 INR/Piece

Get a Price/Quote

Product Details:

Product Type Temperature And Humidity Controller
Material MS
Voltage 110-215 Volt (v)
Usage Industrial
Operate Method Semi Automatic
Size Standard
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

HUMIDITY and TEMPERATURE CONTROLLER Model 7214 Price And Quantity

Price 3750.0 INR/Piece
Minimum Order Quantity 1 Piece

HUMIDITY and TEMPERATURE CONTROLLER Model 7214 Product Specifications

Voltage 110-215 Volt (v)
Usage Industrial
Size Standard
Operate Method Semi Automatic
Product Type Temperature And Humidity Controller
Material MS

HUMIDITY and TEMPERATURE CONTROLLER Model 7214 Trade Information

Payment Terms Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T)
Supply Ability 100 Piece Per Month
Delivery Time 20 Week
Main Export Market(s) Asia, Australia, Central America, South America, Eastern Europe, Western Europe, Middle East, North America, Africa
Main Domestic Market All India

Product Description

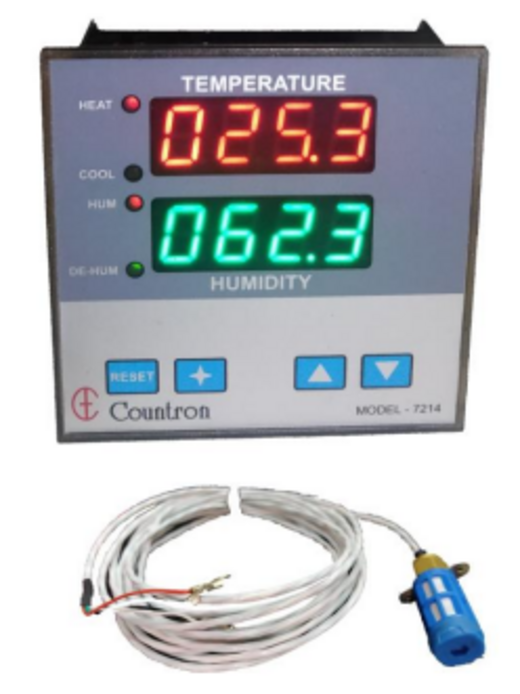

HUMIDITY/TEMPERATURE CONTROLLER Model 7214

Features:

Bright 7 segment, 4 Digit Green Display for Humidity and 4 Digit Red Display for Temperature
4 separate Limits and Solid State Relay (SSR) outputs for Heater, Cooler, Humidifier and De-Humidifier.
Proportional (PWM) SSR outputs for Heater and Humidifier with user settable Percentage Power
On/Off SSR outputs for Cooler and De-Humidifier with user settable Hysterisis
Digital Offset control for Temperature and Humidity
Capacitive sensor for 0-100% Humidity and -20 C to +80 C

Specifications:
Display :
4 Digit, 7 segment Green LED display (0.56 height) for Humidity
4 Digit, 7 segment Red LED display (0.56 height) for Temperature
Range : 0-100.0% for Humidity (in 5 C to 50 C temperature range) -20.0 C to +80.0 C for Temperature
Set Limits : 0-100.0% for Humidifier
0-100.0% for De-Humidifier
-40.0 C to +100.0 C for Heater
-40.0 C to +100.0 C for Cooler
Percentage Power: 0-200% for Set Limits of Humidifier and Heater.
Hysterisis : 0-9.9 for De-Humidifier and CoolerDigital Offsets : -19.9 to +19.9 for Humidity
-19.9 to +19.9 for Temperature
Sensor Supply : 5V DC
SSR Outputs : +12VDC outputs Heater, Cooler, Humidifier and De-Humidifier
Memory Retention: 10 years
Mounting : Panel Mounting
Size : 96mm x 96mm. Depth 50mm
Weight : Approx. 375 gms.
Operating Temp. : 0-50 C
Humidity : 95% RH
