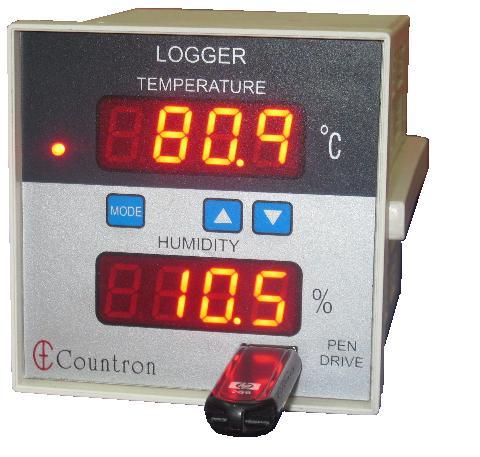

Humidity and Temperature Data Logger Model CT700

Display

0.56'' Red LED display for Humidity and Temperture

Display Range

0-99.9% for Relative Humidity and 0-99.9C for Temperature

Resolution

0.1% for Relative Humidity and 0.1C for Temperature

Logging Rate

1 second to 99Mins59seconds

Data Logging

Directly create a .csv file on the Pen Drive (compatible with Excel)

Data Logging

Directly create a .csv file on the Pen Drive (compatible with Excel) giving a tabular format values of Date, Time, Humidity and Temperature

Sensor

Capacitive for Humidity (Dry/Wet sensor also available on request) PT100 sensor for Temperature

Accuracy

-+2% -+ 1 Least Significant Digit for Humidity. -+0.2C -+ 1 Least Significant Digit for Temperature

Power Supply

230V AC -+ 15% at 50/60Hz

Mounting Type

Panel Type

Front Facia

96mm x 96mm
