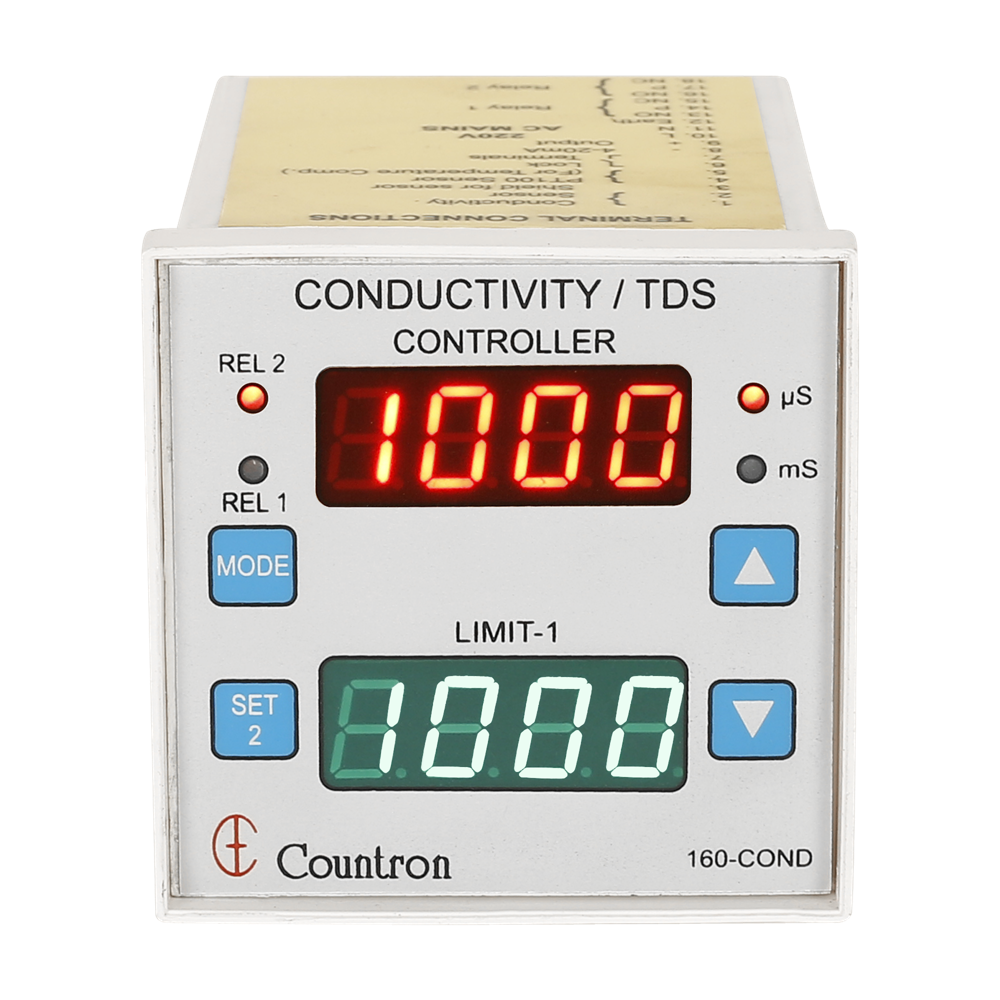

2 Set-Point Digital Conductivity Controller
Product Details:
- Pressure Up to 6 bar, suitable for industrial and laboratory applications
- Connection Terminal block connections for sensor, power supply, and control outputs
- Accuracy 1% of full scale
- Function 2 Set-Point digital conductivity controller for continuous and precise measurement and control of liquid conductivity
- Size Panel mountable enclosure, approximate dimensions W 96 mm x H 96 mm x D 100 mm
- Click to View more
X
2 Set-Point Digital Conductivity Controller Price And Quantity
- 1 Piece
2 Set-Point Digital Conductivity Controller Product Specifications
- Up to 6 bar, suitable for industrial and laboratory applications
- 2 Set-Point digital conductivity controller for continuous and precise measurement and control of liquid conductivity
- Panel mountable enclosure, approximate dimensions W 96 mm x H 96 mm x D 100 mm
- Terminal block connections for sensor, power supply, and control outputs
- 1% of full scale
2 Set-Point Digital Conductivity Controller Trade Information
- Cheque
- Per Month
- Days
- thermocol/Cardboard boxes
- Australia, North America, Eastern Europe, Middle East, Africa, Western Europe, Central America, South America, Asia
- All India
Product Description
We are providing a unique arrangement of 2 Set-Point Digital Conductivity Controller. It is designed for fast and accurate measurement. This controller is able to allows us to measure the level of conductivity in solutions. 2 Set-Point Digital Conductivity Controller helps to pass an electric current. Furthermore, provided controller is an external devices based on the measured conductivity value. It is an automated device which ensures an internal alarm set discourages unauthorized adjustments
Specification
| Display | 3 Digit LCD |
| Range | a. 199.9s |
| Resolution | 0.1s to 0.1ms depending on range selected. |
| Accuracy | 0.5% of Full Scale 1 Least Significant Digit. |
| Sensor | Contact Type with Cell Constant 1.0 |
| Temperature | Uses PT100, precision temperature sensor (External). |
| Compensation | The Compensation is internally set at 2% per C |
| Limit Setting | Using 2 Nos. 10 turn precision trimpots on front panel to set the High/Low Limi |
| Control Output | Two set of NO-P-NC, 5 Amps potential free Relay Contacts. |
| Recorder Output | 0-2V for the selected range |
| Supply | 110V AC/220V AC 15% Internally selectable |
| Size | Front Fascia 96mm x 96mm, Cut Out 92mm x 92mm |
| Cabinet | Flame retardant grade Plastic enclosure |
Advanced Conductivity Monitoring
Achieve continuous and precise conductivity measurement with a large digital LED display and dual, user-adjustable set-points. Quick calibration and reliable readings support enhanced control across a variety of liquid-based processes in both industry and laboratory environments.
Flexible Process Control
Benefit from two independent relay outputs, selectable On/Off and proportional control, and compatibility with numerous conductivity cell types. The controller is equipped for seamless integration, offering robust automation for systems requiring close conductivity management.
Rugged, Reliable Design
The enclosure is crafted from flame-resistant and corrosion-proof ABS plastic, offering IP54 protection for the front panel. Easy panel mounting with the included clamp kit ensures a secure installation, even in demanding environments. The unit operates reliably from 0C to 50C and up to 6 bar pressure.
FAQs of 2 Set-Point Digital Conductivity Controller:
Q: How do I adjust and configure the set-points on this conductivity controller?
A: Set-points are adjusted individually using the digital keypad on the controllers front panel. Simply use the keypad to enter your desired values within the 0 to 2000 S/cm measurement range. Visual confirmation and feedback are provided via the digital LED display for easy and precise configuration.Q: What type of sensors can be connected to this controller?
A: The controller is compatible with various standard conductivity cell types, allowing flexibility in sensor selection for differing process requirements.Q: When is automatic temperature compensation (ATC) recommended, and how is it implemented?
A: Automatic temperature compensation is recommended for processes where liquid temperature fluctuates, as it helps maintain measurement accuracy. You can enable ATC by connecting an appropriate temperature sensor to the unit; manual compensation is also available via the digital keypad.Q: Where is this controller suitable for installation?
A: Designed for panel mounting, this controller is ideal for both industrial and laboratory settings. Its IP54-rated front panel and rugged ABS enclosure ensure reliable operation even in challenging or corrosive environments.Q: What is the process for integrating this controller into an existing system?
A: Integration involves panel mounting using the provided clamp kit, followed by connecting the sensor, power supply, and relay outputs via terminal blocks. The device supports 230V AC (standard) or 110V AC (optional) power supplies.Q: How does the alarm indication system work?
A: Alarms are signaled by a bright visual LED and a buzzer, alerting operators immediately to any process deviations that require attention.Q: What benefits does the dual set-point functionality provide in practice?
A: Dual set-point functionality enables independent control over two process thresholds, optimizing automation and improving process safety and efficiency.Tell us about your requirement
