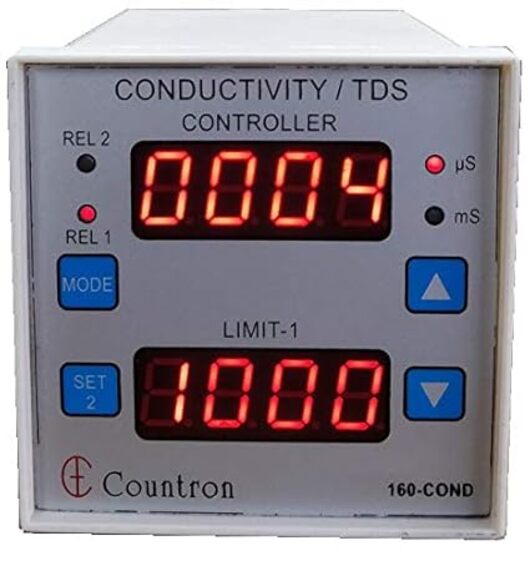

Conductivity/TDS Controller Model 160-COND

8500.0 INR/Piece

Request to Call Back Send Inquiry

Conductivity/TDS Controller Model 160-COND Price And Quantity

Payment Terms Cash in Advance (CID) Cheque Telegraphic Transfer (T/T)
Supply Ability 100 Piece Per Month
Delivery Time 20 Week
Main Export Market(s) Africa Asia South America Eastern Europe Western Europe Middle East Australia North America Central America
Main Domestic Market All India

Conductivity/TDS Controller Model 160-COND

Features:

Auto/Manual temperature compensation selectable
Conductivity and TDS selectable from front panel
Cell Factor selectable for both 1.0 and 0.1
4 Step Range selection 0.1s to 199.9ms for conductivity
Digital calibration for Conductivity/TDS
Auto Temp Compensation using PT100 sensor
Dual set limit with separate relay outputs
Settable hysteresis for both set limits
Bright Red LED display with separate display for set limit-1

Specifications:
Display : 0.56 Red LED 7 segment Display for Conductivity/TDS 0.56 Red LED 7 segment Display for Set-Limit-1
Ranges : Conductivity: 0.1 Cell 1.0 Cell
19.99ms 199.9ms
1999 s 19.99ms
199.9s 1999 s
19.99s 199.9s
TDS: 0-1999ppm
Resolution : Conductivity: 0.01ms or 0.01s depending on range & Cell factor
TDS: 1ppm
Auto Temp. Comp. : 0-100 C using PT100 external sensor
Manual Temp. Comp. : Settable from front panel from 0-100.0 C
Cond/TDS Calibration : Digital calibration by factor multiplication from 0.75-1.25
Recorder Output : Isolated 4-20mA => 0-2000 (for whatever unit and resolution selected
(Maximum termination 250)
Control Output : Two set of NO-P-NC, 5 Amps potential free Relay Contacts.
Relay 1 ON, for Cond/TDS < Set Limit1 Hysterises1
Relay 1 OFF, for Cond/TDS > Set Limit1
Relay 2 OFF, for Cond/TDS < Set Limit2
Relay 2 ON, for Cond/TDS > Set Limit2 + Hysterises2
Accuracy : 0.5% 1 Digit
Supply : 220V AC 10% @ 50Hz
Enclosure : Plastic (ABS). Size -96x96x110mmm
Weight : 900gms
Aesthetically designed front panel with membrane switches and ABS cabinet
