Ampere Hour Meter with Charge Discharge

Get a Price/Quote

Product Details:

Usage & Applications Battery Testing, Battery Charging & Discharging System, Industrial Battery Rooms, Power Banks
Accuracy ±1% FSD
Batteries Type Lead Acid, Li-ion, NiCd, SMF, and Other Rechargeable Batteries
Resistant Feature Shock & Flame Resistant Body
Product Type Ampere Hour Meter with Charge Discharge
Material High Grade ABS Plastic
Measuring Voltage Range 10V-300V DC
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Ampere Hour Meter with Charge Discharge Product Specifications

Measuring Voltage Range 10V-300V DC
Color Black Front with Grey/White Body
Insulation Box Yes
Resistant Feature Shock & Flame Resistant Body
Frequency (MHz) DC Application (Not Applicable)
Product Type Ampere Hour Meter with Charge Discharge
Protection System Over Voltage & Over Current Protection
Dimension (L*W*H) 96 mm x 96 mm x 110 mm
Batteries Type Lead Acid, Li-ion, NiCd, SMF, and Other Rechargeable Batteries
Weight Approx. 450 grams
Size Standard Panel Mount (96mm x 96mm)
Material High Grade ABS Plastic
Usage & Applications Battery Testing, Battery Charging & Discharging System, Industrial Battery Rooms, Power Banks
Operating Temperature 0°C to 50°C
Accuracy ±1% FSD

Calibration Factory Calibrated & Tamper Proof Seal
Auxiliary Function Auto Reset and Manual Reset Functions
Application Standards IS 9001:2015 compliant
Memory Retention Non-volatile memory retains last reading after power failure
Mounting Type Panel Mounted with Clamp Support
Current Measuring Range 0-50A DC (Customizable on request)
Enclosure Protection IP54 Front Protection
Input Connection Type Screw Terminal Blocks for Secure Wiring
Indication LED Indication for Charge and Discharge Modes
Power Supply 230V AC, 50 Hz or 110V AC, 60 Hz
Data Logging Optional RS485 Communication for Data Logging
Display Type 7 Segment LED Digital Display

Product Description

Model code:808AH
Product Name:Ampere Hour Meter with Charge Discharge
Category:ampere_hour_meters
Sub Category:battery_testing_application

Specification

Display	4 Digit 7 Segment Red LED display for Charging Ampere Hours 4 Digit 7 Segment Red LED display for Ampere-Hours
Shunt Calibration	Maximum 9999 Amps corresponding to 75mV settable from front panel
Discharge Set Point	Settable from 0-9999
Resolution	1AH/0.1AH
Relay	In alarm mode for Discharge Ampere Hours
Contact Rating	NO-P-NC @ 5Amps/220V AC
Memory	Settings and Ampere-Hours saved in solid state EEPROM
Lock	By rear jumper to prevent accidental tampering with shunt setting
Supply	48V DC ± 10% (Also available in 24V/96V/120V DC)
Size	Front Fascia 96mm x 96mm
Weight	800 grams

Precision Monitoring for Industrial Battery Systems

This Ampere Hour Meter is tailored for demanding environments like battery test labs, industrial battery rooms, and power banks. With a 0-50A DC measuring range (customizable), optional data communication, and memory retention even during power failures, it ensures accurate, real-time tracking of charge and discharge cycles. Its tamper-proof factory calibration and robust panel mounting support make it a reliable, low-maintenance addition to battery management systems.

Advanced Protection and Secure Installation

Engineered with user safety and durability in mind, the meter boasts IP54 front protection, overvoltage and overcurrent safeguards, as well as a shock- and flame-resistant ABS body. The panel-mounted design, with clamp support and secure screw terminal blocks, guarantees firm installation and stable operation in critical settings. Non-volatile memory and both auto/manual reset functions enhance usability and data security.

FAQs of Ampere Hour Meter with Charge Discharge:

Q: How is the Ampere Hour Meter installed in industrial settings?

A: Installation is straightforwardpanel mounting is achieved with provided clamp support, and wiring is secured using screw terminal blocks. The standard size (96x96mm) ensures compatibility with common industrial panels.

Q: What are the main benefits of using this meter for battery testing and management?

A: The meter offers accurate monitoring of charge/discharge cycles, memory retention after power failures, clear LED indications, and robust tamper-proof calibration. These features help maintain battery health and improve the reliability of power systems.

Q: When should I use the auto reset or manual reset functions?

A: The auto reset function is optimal for applications requiring automated cycle counting, particularly in repetitive testing environments. Manual reset allows users to clear readings as needed for data accuracy or maintenance purposes.

Q: Where can this meter be effectively applied?

A: This meter is widely used in battery testing setups, battery charging/discharging systems, industrial battery facilities, and power bank manufacturing environments. Its ability to handle multiple battery chemistries makes it highly versatile.

Q: What process does the meter follow to retain data after power interruptions?

A: It utilizes non-volatile memory, meaning the last measured values are securely stored and retained even if the power supply is disrupted, ensuring no loss of critical data.

Q: How does the optional RS485 data logging enhance meter usability?

A: RS485 communication enables remote data access and logging, facilitating integration with centralized monitoring systems for analysis, reporting, and predictive maintenance.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Ampere Hour Meters' category

Programmable Ampere Hour Meter Minimum Order Quantity : 1 Material : Polycarbonate Body Size : Panel Mounted, Standard DIN Size Usage & Applications : Battery monitoring, plating, UPS, solar application, electroplating, battery charging Product Type : Programmable Ampere Hour Meter Protection System : Overload and Short Circuit Protection Color : Black Frequency (MHz) : 50/60 Hz Dimension (L*W*H) : 96 mm x 96 mm x 65 mm Batteries Type : Lead Acid, Lithium, NiCd Weight : 350 grams Operating Temperature : 0C to 50C Accuracy : 1% of Full Scale Measuring Voltage Range : 12V DC to 440V AC Insulation Box : Yes, High Impact ABS Pressure : Atmospheric Resistant Feature : Shock Proof, Heat Resistant

Send Inquiry

Ampere Hour Meter with dual time relays Material : ABS plastic housing Size : Standard panel mount Usage & Applications : Battery charging, energy monitoring, industrial automation Product Type : Ampere Hour Meter with Dual Time Relays Protection System : Overload and short circuit protection included Color : Black and grey Frequency (MHz) : 50 to 60 Hz Dimension (L*W*H) : 120mm x 96mm x 65mm Batteries Type : Compatible with leadacid and lithium batteries Weight : Approx. 350 grams Operating Temperature : 10C to 55C Accuracy : 1% of full scale Measuring Voltage Range : 5V to 240V DC Insulation Box : High grade, flameretardant ABS enclosure Pressure : Atmospheric pressure range Resistant Feature : Resistant to dust, humidity, and mild chemicals

Send Inquiry

Programmable Amp Hour Meter 800AH Price : 4500.0 INR/Unit Minimum Order Quantity : 1 Material : Metal Size : Standard Usage & Applications : Testing & Measurement Product Type : Ampere Hour Meter Protection System : High Color : White Frequency (MHz) : 50/60 Hertz (HZ)

Send Inquiry

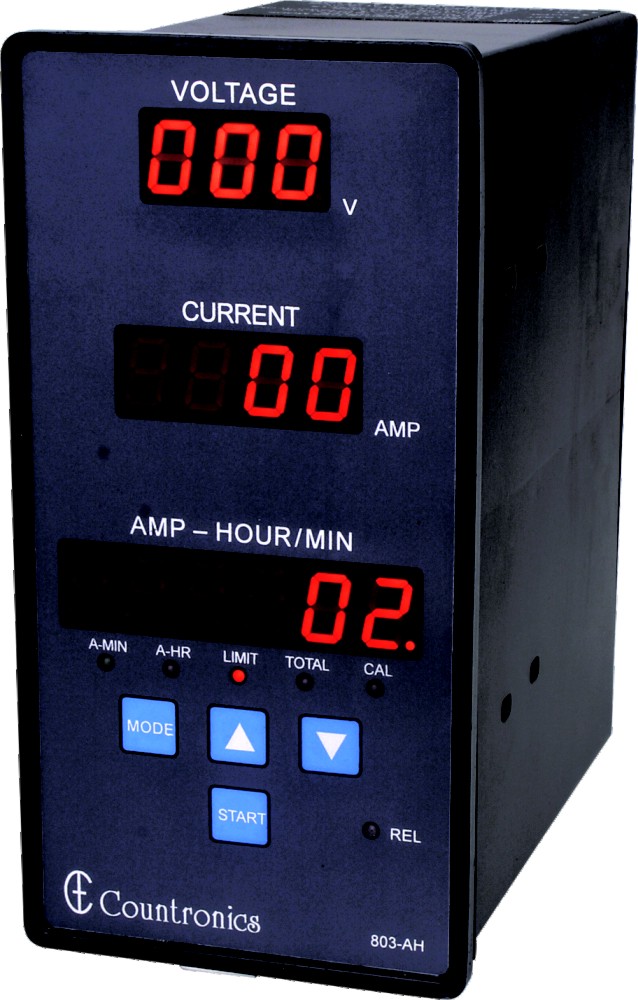

Programmable Ampere Hour Meter Model 803AH Price : 7000.0 INR/Unit Minimum Order Quantity : 1 Material : Metal Size : Standard Usage & Applications : Power Supply Product Type : Ampere Hour Meter Protection System : High Color : Black Frequency (MHz) : 50/60 Hertz (HZ)
