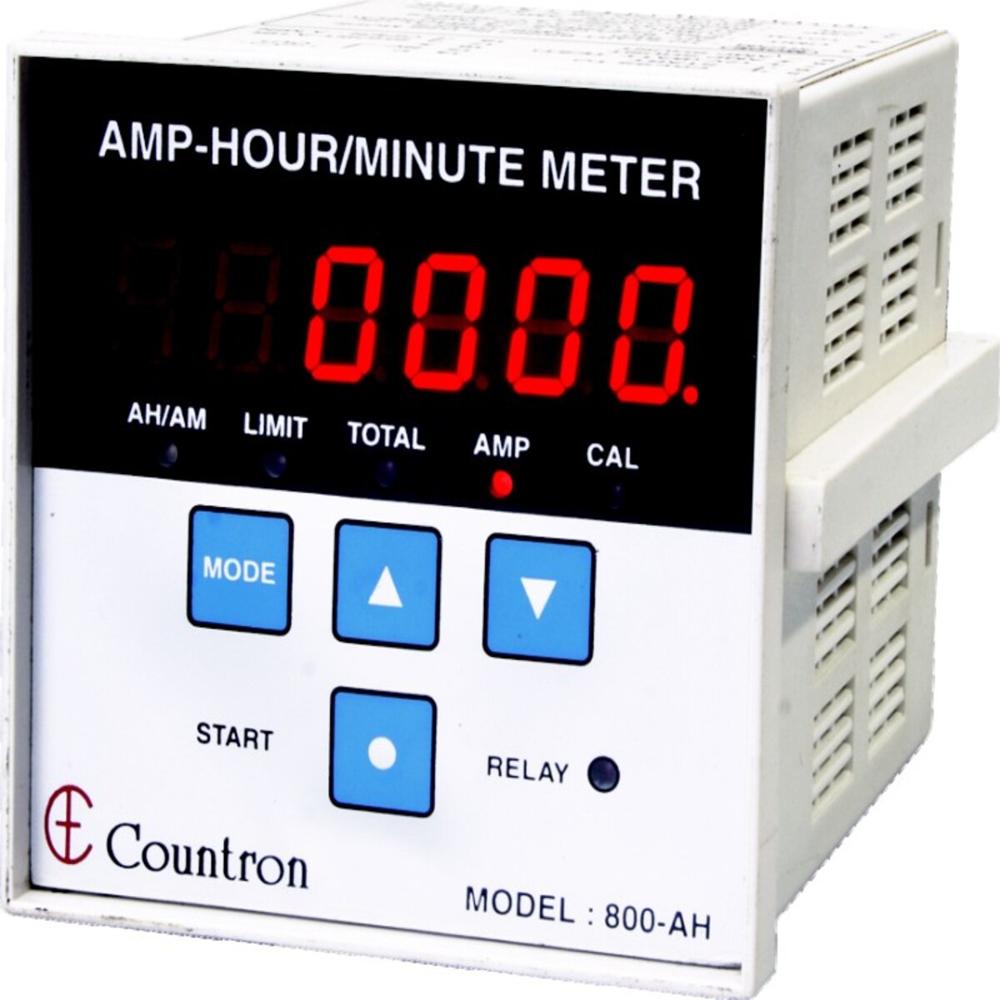

Programmable Amp Hour Meter 800AH

Name: Programmable Amp Hour Meter 800AH
Brand: COUNTRONICS
Price: 4500.0 INR
Availability: InStock

4500.0 INR/Unit

Get a Price/Quote

Product Details:

Usage & Applications Testing & Measurement
Product Type Ampere Hour Meter
Material Metal
Frequency (MHz) 50/60 Hertz (HZ)
Protection System High
Size Standard
Color White
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Programmable Amp Hour Meter 800AH Price And Quantity

Price 4500.0 INR/Unit
Minimum Order Quantity 1 ,

Programmable Amp Hour Meter 800AH Product Specifications

Size Standard
Usage & Applications Testing & Measurement
Frequency (MHz) 50/60 Hertz (HZ)
Color White
Protection System High
Product Type Ampere Hour Meter
Material Metal

Programmable Amp Hour Meter 800AH Trade Information

Payment Terms Cash in Advance (CID), Telegraphic Transfer (T/T), Cheque
Supply Ability 100 , Per Month
Delivery Time 20 Week
Packaging Details Thermocol/Cardboard Boxes
Main Export Market(s) South America, Eastern Europe, Western Europe, Asia, Australia, Central America, North America, Middle East, Africa
Main Domestic Market All India

Product Description

Model code800AH
Product NameProgrammable Amp Hour Meter
Categoryampere_hour_meters
Sub Categorybattery_testing_application
Features
Current Integrated Display
4 DIG AMPHOUR Selectable AH 01 AH AMin 01 AMin
Presetable Limit for AmpHour with Relay Out
6 Digit Totalizer AH Stored in EEPROM Front Resettable
Displays Current in Amps
Lockable Scale Factor CAL for Various Shunts
Signal Input in mV from Current Shunt of 75mVAmp
Application in Constant Thickness Electroplating which is Proportional to Preset AH Limit irrespective of Voltage Current Variation
Simultaneous Input for mVfrom Current Shunt and Battery Voltage to measure the AH of a chargeable Battery when Voltage falls to FactorySettable Limit usually 105V for 12V Batt
Specification
Display
6 RED 7 Segment LEDs of 056 character height
Current Display
Max 9999 Amps using a shunt of current75mV User programmed
AmpHour

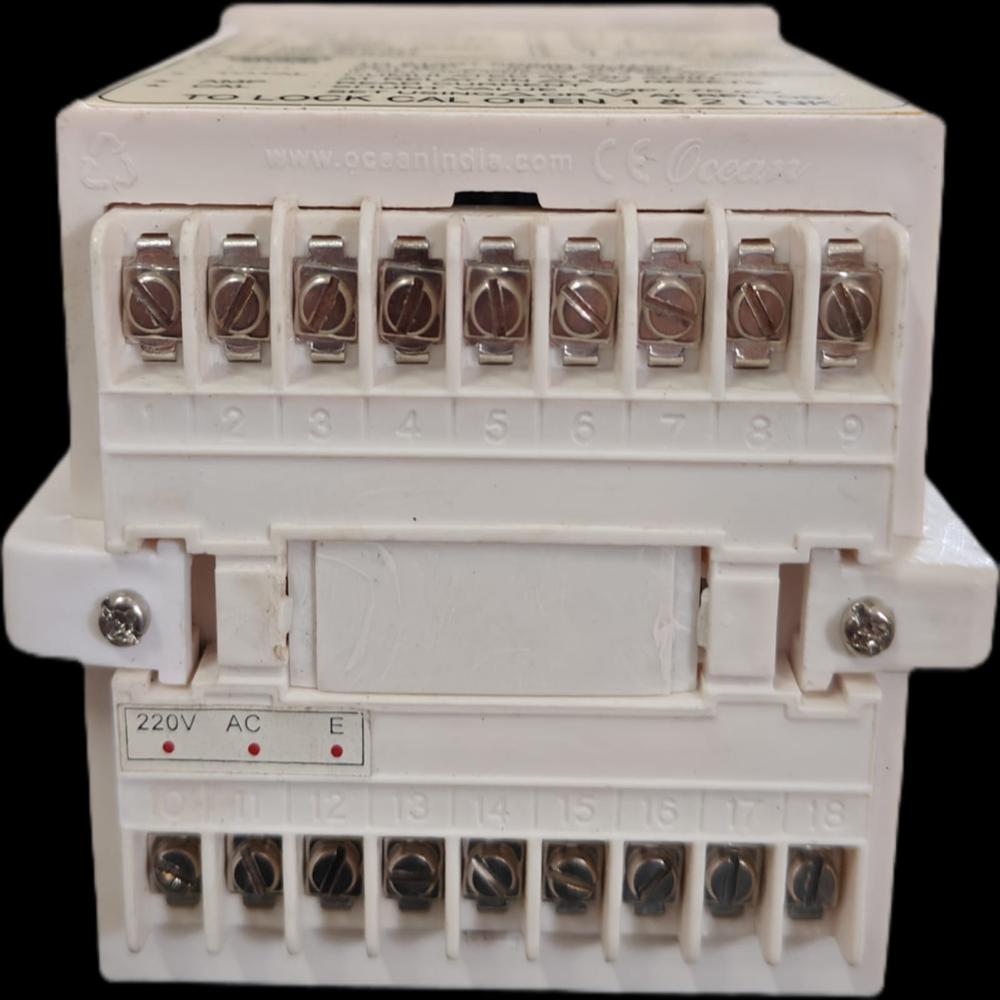

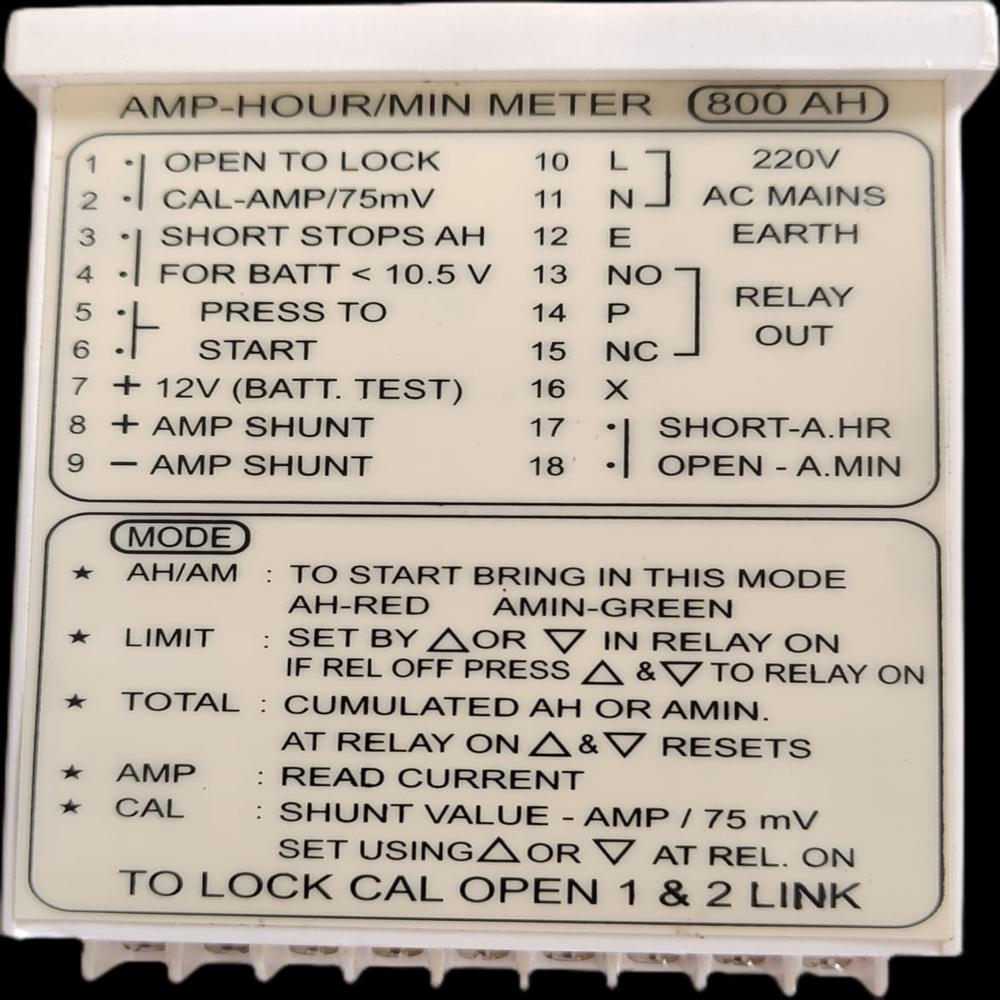

Max 9999 AH for each preset cycle AmpHour range is selected by shorting Pin1718 at the rear
AmpMinute
Max 9999 AMin for each preset cycle AmpMinute is selected opening the linkbetween Pin 17 18
Max shunt
Max value of 9999 Amp corresponding to 75mV
Totaliser
6 Digits for AmpHour or AmpMin ie 999999 readable for 10 sec by goinginto total mode
Limit
Up to 9999 AH or Amin setting In limit mode using incr decr switches
Relay Contact
One NOPNC of 5 Amp rating
Trigger start
By pressing front panel switch or closing a rear external contact
Battery BackUp
Not required Programmed values readings including AH stored in EPROM
Lock
Electronic lock for calibration open link between Pin 1 2 to lock CAL
Low Volt Trigger
Set at 105V internally For testing 12V Battery AH With Pin 3 4 shorted
Increased Res
01AH or 01AMin facility by shifting internal jumper
Supply
220V AC 10
Size

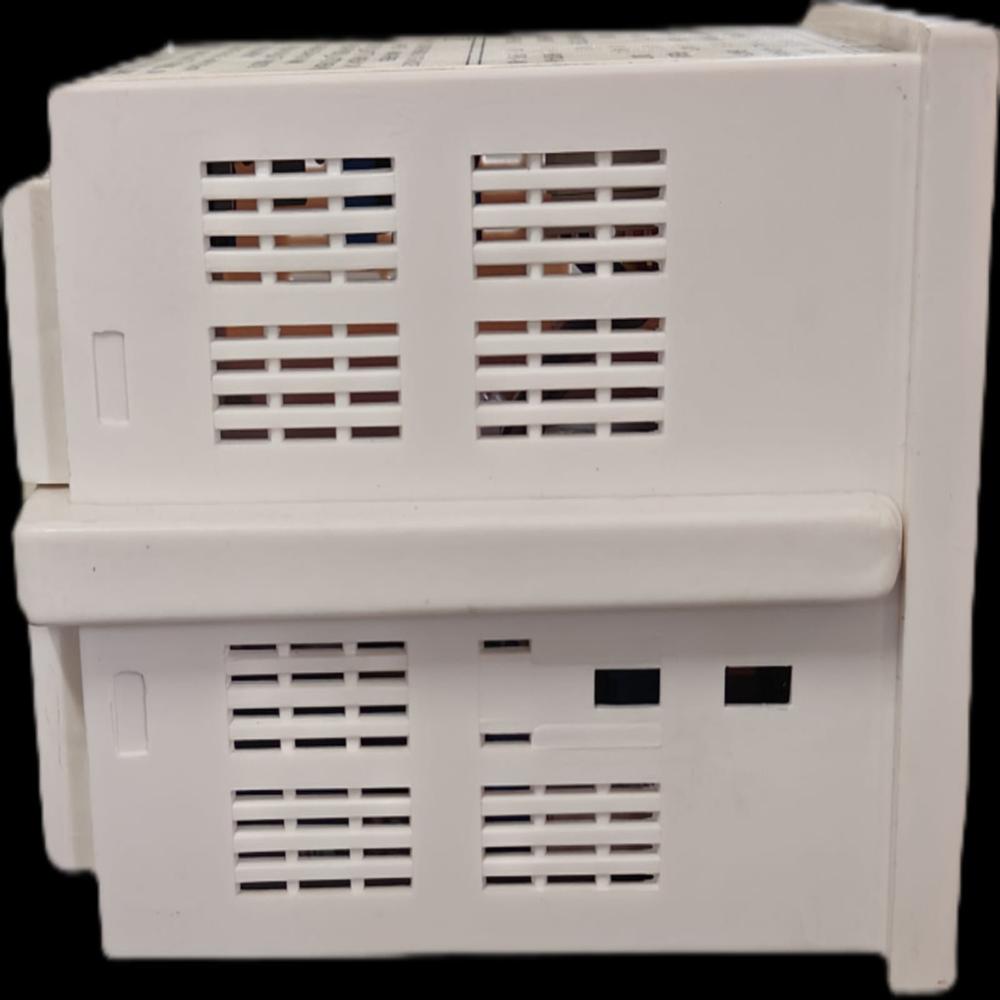

Front Fascia 96mm x 96mm Din Size Depth 135mm Cut Out 91mm x 91mm
Weight
800 grams

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Ampere Hour Meters' category

Programmable Ampere Hour Meter Minimum Order Quantity : 1 Size : Panel Mounted, Standard DIN Size Material : Polycarbonate Body Usage & Applications : Battery monitoring, plating, UPS, solar application, electroplating, battery charging Product Type : Programmable Ampere Hour Meter Color : Black Protection System : Overload and Short Circuit Protection Frequency (MHz) : 50/60 Hz Resistant Feature : Shock Proof, Heat Resistant Measuring Voltage Range : 12V DC to 440V AC Accuracy : 1% of Full Scale Dimension (L*W*H) : 96 mm x 96 mm x 65 mm Batteries Type : Lead Acid, Lithium, NiCd Operating Temperature : 0C to 50C Weight : 350 grams Insulation Box : Yes, High Impact ABS Pressure : Atmospheric

Send Inquiry

Ampere Hour Meter with dual time relays Size : Standard panel mount Material : ABS plastic housing Usage & Applications : Battery charging, energy monitoring, industrial automation Product Type : Ampere Hour Meter with Dual Time Relays Color : Black and grey Protection System : Overload and short circuit protection included Frequency (MHz) : 50 to 60 Hz Resistant Feature : Resistant to dust, humidity, and mild chemicals Measuring Voltage Range : 5V to 240V DC Accuracy : 1% of full scale Dimension (L*W*H) : 120mm x 96mm x 65mm Batteries Type : Compatible with leadacid and lithium batteries Operating Temperature : 10C to 55C Weight : Approx. 350 grams Insulation Box : High grade, flameretardant ABS enclosure Pressure : Atmospheric pressure range

Send Inquiry

Ampere Hour Meter with Charge Discharge Size : Standard Panel Mount (96mm x 96mm) Material : High Grade ABS Plastic Usage & Applications : Battery Testing, Battery Charging & Discharging System, Industrial Battery Rooms, Power Banks Product Type : Ampere Hour Meter with Charge Discharge Color : Black Front with Grey/White Body Protection System : Over Voltage & Over Current Protection Frequency (MHz) : DC Application (Not Applicable) Resistant Feature : Shock & Flame Resistant Body Measuring Voltage Range : 10V300V DC Accuracy : 1% FSD Dimension (L*W*H) : 96 mm x 96 mm x 110 mm Batteries Type : Lead Acid, Liion, NiCd, SMF, and Other Rechargeable Batteries Operating Temperature : 0C to 50C Weight : Approx. 450 grams Insulation Box : Yes

Send Inquiry

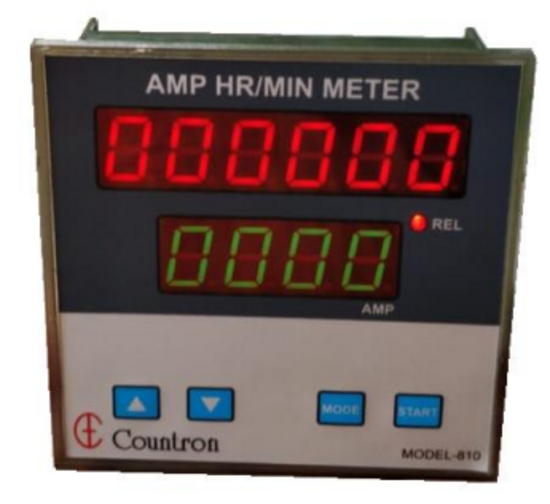

Programmable Ampere Hour Meter Model 810AH Price : 4500.0 INR/Piece Minimum Order Quantity : 1 Size : Standard Material : MS Usage & Applications : Industrial & Commercial Product Type : Ampere Hour Meter
