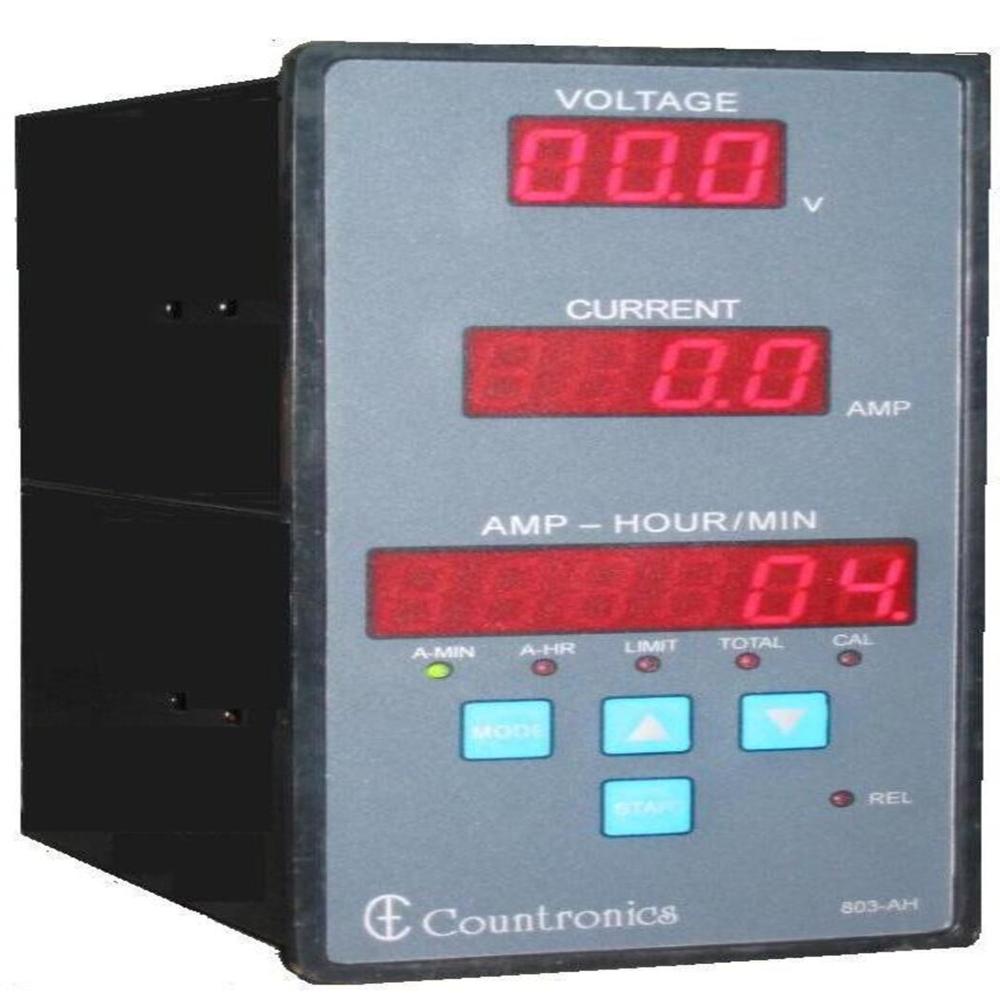

Programmable Ampere Hour Meter

Programmable Ampere Hour Meter

Product Details:

X

Product Description

We are a reputed manufacturer and trader of a huge gamut of Programmable Amp Hr Meter. Manufactured keeping in mind all the set quality norms of the industry, our range of meter is ideal for ensuring electroplating thickness by presetting AMP-HOUR. Also, our range of meter is widely useful for checking Amp-Hour of rechargeable batteries using voltage limit. Also, before the final dispatch., our range of Programmable Amp Hr Meter is well tested on different quality parameters by our quality experts.



  • Model code:803AH
  • Product Name:Programmable Amp Hr Meter
  • Category:ampere_hour_meters
  • Sub Category:battery_testing_application



Features



  • Separate displays for Voltage, Current and Amp-Hour
  • Programmable for AH/0.1AH/Amin/0.1AMin
  • Usable with any shunt by setting ‘Calibration’ for Amp-75mV
  • Calibration factor lockable from rear
  • 4 Digit Amp-Hour and 6 Digit cumulative Amp-Hour display
  • Attractive front panel membrane switches in rugged Aluminum cabinet
  • In case of power failure, the current status of selected parameters, the current Amp-Hour and Cumulative Amp-Hour is saved



Specification

  • Display :All of 0.56in character height Red 7 Segment displays
  • a.3 Digits to display voltage 0 – 99.9V
  • b.4 Digits to display current 0 – 999.9Amps
  • c.6 Digits to display Amp-Hour (4 Digit) and cumulative Amp-Hour (6 Digit)
  • Max. Shunt : Max. value of 999.9 Amps corresponding to 75mV. User programmable from front in ‘CAL’ mode. (Max. value of 9999Amps also available on request)
  • Selection of Amp Hour/Min : Short Pin 17-18 for Amp-Hour
  • Open link of Pin 17-18 for Amp-Minute
  • 0.1AH/Amin : Higher 0.1 resolution by shifting internal jumper by opening cover
  • Totaliser : 6 Digit readable in ‘Total’ Mode
  • Limit Up to 9999 Ahr/Amin settable in limit mode using increment/decrement switches
  • Relay : NO-P-NC of 5 Amp at 220V AC contact rating
  • Start : Pressing front panel switch or momentarily shorting rear Pins 5 & 6 by wiring an external switch
  • Memory :Non-volatile EEPROM solid state memory
  • Stores programmed value of shunt, preset value, current Amp-Hr and the current
  • Cumulative Amp-Hr to preserve current status on power failure
  • Lock : Open Link between Pin 1 & 2 to Lock ‘Cal’ i.e. shunt value
  • Low Voltage Stop Internally set at 10.5V for testing 12V battery. Short Pins 3 & 4 for this function
  • Supply : 220V AC ± 10% at 50/60Hz
  • Size : Vertical type with front panel 96 x 192 mm
  • Terminals : At rear with marking for wiring
  • Mounting : Panel Mounted
  • Fuse : At rear of 0.2Amps
