Programmable Ampere Hour Meter Model 810AH

Programmable Ampere Hour Meter Model 810AH

Name: Programmable Ampere Hour Meter Model 810AH
Brand: COUNTRONICS
Price: 4500.0 INR
Availability: InStock

4500.0 INR/Piece

Get a Price/Quote

Product Details:

Usage & Applications Industrial & Commercial
Product Type Ampere Hour Meter
Size Standard
Warranty 1 year
Phase 1
Features Good Quality
Material MS
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Programmable Ampere Hour Meter Model 810AH Price And Quantity

Price 4500.0 INR/Piece
Minimum Order Quantity 1 Piece

Programmable Ampere Hour Meter Model 810AH Product Specifications

Size Standard
Product Type Ampere Hour Meter
Usage & Applications Industrial & Commercial
Features Good Quality
Warranty 1 year
Phase 1
Material MS

Programmable Ampere Hour Meter Model 810AH Trade Information

Payment Terms Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T)
Supply Ability 100 Piece Per Month
Delivery Time 20 Week
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India

Product Description

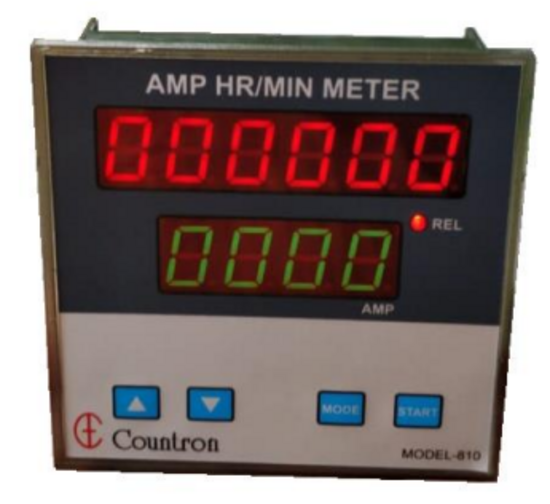

PROGRAMMABLE AMP. HOUR METER MODEL 810AH

This micro-controller based programmable Amp-Hour Meter is designed to integrate and display DC

current flowing respect to time. It becomes a measure of the total current energy.

A preset limit of this integrated current can be pre-programmed and when the limit is reached, a relay is

switched ON to trigger an alarm. A 6 digit display for Ampere Hour and a 4 digit display for Current is

provided.

In addition, an internal limit of 10.5V is preset so that a 12V Battery can be tested for its A-H. As soon as the

12V battery discharges to a voltage below10.5V the Amp-Hour meter stops automatically.

The instrument reads current also. For different ranges, the equipment can be user-programmed for

different shunt resistances.

SPECIFICATIONS:

1. Display : 6 RED 7 Segment LEDs of 0.56 character height. 4 Digit Green display for Current

2. Current : Max 9999 Amps using a shunt of current/75mV. User programmed.

3. Amp-Hour : Max 999999 A-H for each preset cycle.

4. Amp-Min : Max 999999 A-Min for each preset cycle

5. Max shunt : Max value of 9999 Amp corresponding to 75mV

6. Totaliser : 6 Digits for Amp-Hour or Amp-Min. i.e. 99,99,99

7. Limit : Up to 999999 AH or Amin. setting

8. Relay Contact : One NO-P-NC of 5 Amp rating

9. Trigger start : By pressing front panel switch or closing a rear external contact.

10. Battery : Not required. All programmed values and readings including A-H stored in EEPROM

11. Lock : Electronic lock for calibration

12. Low Voltage : Set at 10.5V internally. For testing 12V Battery AH

13. Supply : 220V AC 10%

14. Size : Front Fascia: 96mm x 96mm. Depth: 50mm.

15. Weight : 800 grams

16. Mounting : Panel mounted

17. Resolution : 0.1AH or 0.1AMin user selectable through front panel
